Elastic Rubber Cast Iron Plate Swivel Castor 200mm 1000kg Load

£217.65 excl. VAT £261.18

Product code: 2BZK200CUBJ

In stock

Downloads: PDF Datasheet PDF Drawing CAD Drawing

All pictures shown are for illustration purposes only.
Actual product may vary due to product specification.

Description

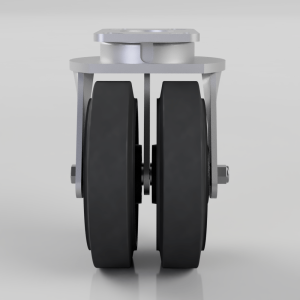

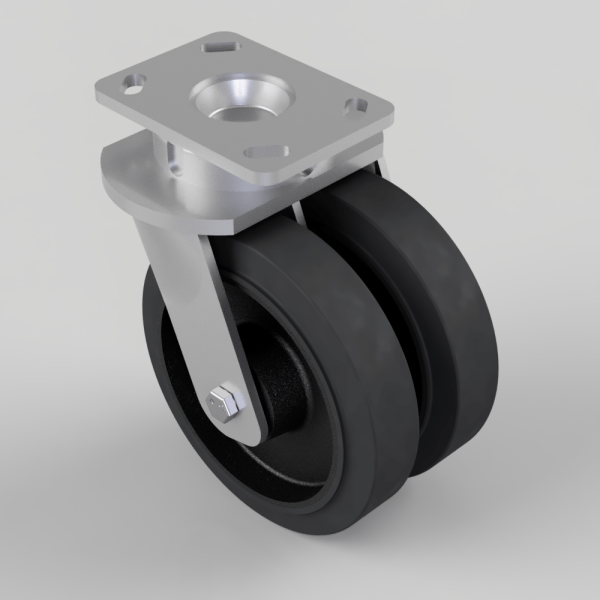

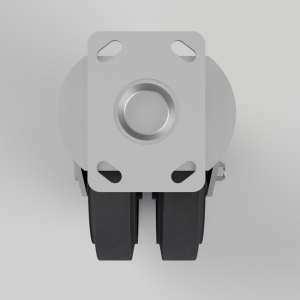

Twin wheeled swivel castor with a top plate fixing fitted with 2 65 shore A black elastic rubber cast iron centred wheels with ball bearings. Wheel diameter 2 x 200mm, tread width 2 x 50mm, overall height 250mm, top plate 150mm x 110mm, hole centres 105mm x 80mm or 121mm x 59mm. Load capacity 1000kg. – At 6 kph speed, the load of each wheel is advised to be 80% of the load at 4kph – At 10 kph speed, the load of each wheel is advised to be 55% of the load at 4 kph. – At 16 kph speed, the load of each wheel is advised to be 45% of the load at 4kph. – At 20 kph speed, the load of each wheel is advised to be 35% of the load at 4 kph. – No data for elastic rubber wheel over 20 kph.

Additional information

Bearing Type

Ball

Castor Type

Swivel

Colour / Shore Hardness

Black Elastic Rubber on Cast Iron Rim / 65 Shore A

Diameter (mm)

200

Fixing Option

Plate

Fork Thickness (mm)

6

Height (mm)

250

Hole Centres (mm)

105/121 x 80/59

Load Capacity (kg)

1000

Plate Size (mm)

150 x 110

Swivel Radius (mm)

170

Temperature Resistance

"-20 °C TO +60 °C

To Suit Fixing Bolt (mm)

12

Top Plate Thickness (mm)

7.5

Tread (mm)

2 x 50

Weight 11.301 kg
Wheel Material

Rubber on Cast Iron
