Polyurethane Nylon Plate Swivel Castor 125mm 250kg Load

Original price was: £144.78.Current price is: £80.11. excl. VAT £96.13

Product code: JAZ125NPBJ

Klarna
Downloads: PDF Datasheet Request drawings

All pictures shown are for illustration purposes only.
Actual product may vary due to product specification.

Description

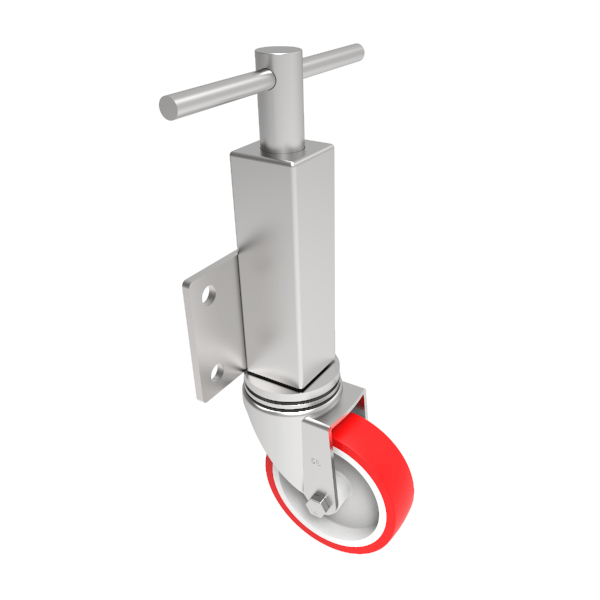

Zinc plated box jacking unit with side fitting plate and a 75mm lift fitted with a 125mm red polyurethane tyred nylon centred ball bearing wheel wheel with a load capacity of 250kg Please note Jacking castors are rated on a different principal to other castors and we recommend the total lifted load is divided over just 2 jacking units.1 extra safety point is when jacked up please beware of any obstacles as a sudden shock could result in the inner square tube bending around the outer tube. Please refer to the BIL catalogue or request a drawing

Additional information

Bearing Type

Ball

Castor Height (mm)

157

Castor Type

Swivel

Colour / Shore Hardness

Red Polyurethane on Nylon Rim / 96 Shore A

Diameter (mm)

125

Fixing Option

Plate

Height (mm)

395 / 470

Lifting Stroke (mm)

75

Load Capacity (kg)

250

Swivel Radius (mm)

104

Temperature Resistance

-20 °C TO +70 °C

To Suit Fixing Bolt (mm)

14

Tread (mm)

40

Wheel Material

Polyurethane on Nylon
