Esense Electric 360 Drive Wheel Plate 145mm 600kg Load Capacity

Price on application ‐ please contact sales

Transform heavy lifting into healthy movement with the esense Fixed Drive Wheel, ideal for indoor use on solid, industrial surfaces. Promote healthy working by reducing physical strain.

  • Power-assisted forwards and sideways driving
  • Rechargeable battery with automatic switch off function
  • Sensor handles for easy movement
  • Water resistant connectors
  • 600kg load capacity

Product code: ESPD360

In stock

Downloads: PDF Datasheet Request drawings

All pictures shown are for illustration purposes only.
Actual product may vary due to product specification.

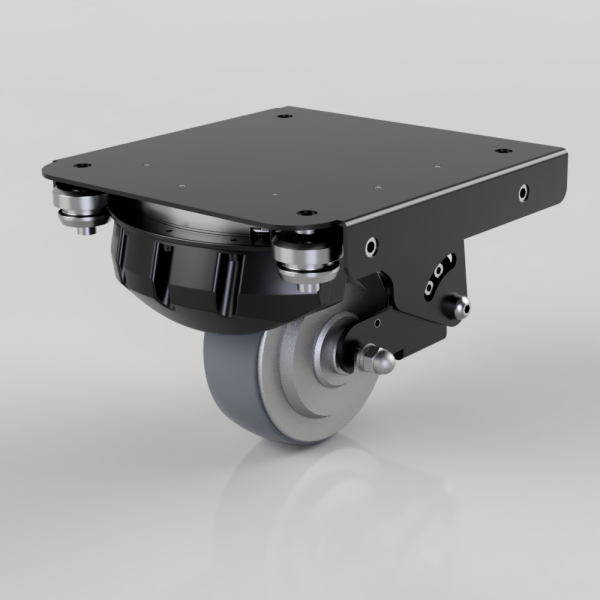

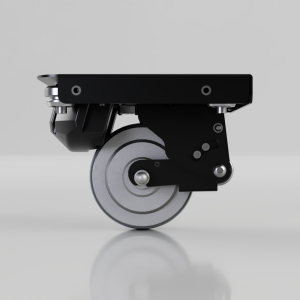

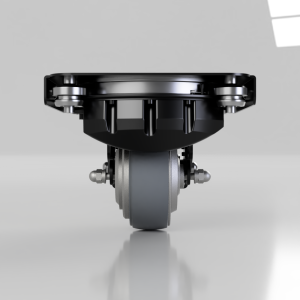

Esense 360 Drive Wheel, the solution for effortlessly manoeuvring heavy loads up to 600kg. With Esense 360 it is possible to drive with power assist in both forwards and sideways directions. Furthermore, systems are available with and without their own battery or water resistant enclosure.

All Esense Dirve Wheels come with an emergency switch, instantly deactivating power assistance when needed. The rechargeable Esense battery ensures uninterrupted operation for up to 15km of driving, with an automatic switch-off function to conserve energy after fifteen minutes of inactivity.

Ideal for various terrains, including carpets, thresholds, slopes, and tight spaces, Esense automatically brakes and comes to a stop if the sensor handles are released during driving.

Designed for indoor use on solid, dry, and clean industrial surfaces, the system promotes healthy working by reducing physical strain. Esense power and box systems are provided with a charger.

Upgrade to Esense and transform heavy lifting into a healthy, hassle-free experience with its intelligent, ergonomic design. Plus, with water-resistant connectors and cabling, it’s built to withstand diverse environments, ensuring durability and reliability in every use.



Additional information


24V 9Ah

Charge Time


Colour / Shore Hardness

Black Polyurethane on Aluminium Rim / 64 Shore A

Diameter (mm)


Height (mm)

160 – 210

Hole Centres (mm)

200 x 200

Load Capacity (kg)


Max Speed


Plate Size (mm)

260 x 265

Temperature Resistance

-20°C – 50°C Driving, 10°C – 40°C Charging

Threshold (mm)


Tread (mm)


Wheel Material

Polyurethane on Aluminium

Wheel Torque

Max 15Nm
