Blue Elastic Rubber 75ShoreA Plate Swivel Castor Brake 160mm 300kg Load

£36.18 excl. VAT £43.42

Product code: BZPH160RNBSWB

Downloads: PDF Datasheet PDF Drawing CAD Drawing

All pictures shown are for illustration purposes only.
Actual product may vary due to product specification.

Description

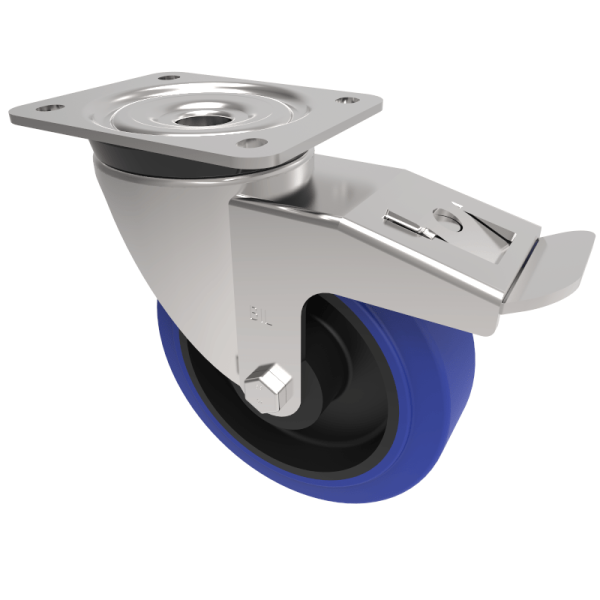

Pressed steel swivel castor with a flat plate fixing fitted with a blue 75 shore A elastic rubber tyre on black nylon centred wheel with a roller bearing and a total lock brake. Wheel diameter 160mm, tread width 50mm, overall height 193mm, plate size 135mm x 110mm, hole centres 105mm x 80mm/75mm. Load capacity 300kg.

Additional information

Bearing Type

Roller

Castor Type

Swivel with Total Lock Brake

Colour / Shore Hardness

Blue Rubber on Nylon Rim / 75 Shore A

Diameter (mm)

160

Fixing Option

Plate

Fork Thickness (mm)

4

Height (mm)

195

Hole Centres (mm)

105 x 80/75

Load Capacity (kg)

300

Plate Size (mm)

135 x 110

Swivel Radius (mm)

170

Temperature Resistance

-20 °C TO +60 °C

To Suit Fixing Bolt (mm)

10

Top Plate Thickness (mm)

4

Tread (mm)

50

Weight 2.723 kg
Wheel Material

Rubber on Nylon
