Black Elastic Speed Rubber 250mm Ball Bearing Wheel 450kg Load

£111.19 excl. VAT £133.43

Product code: BZWMK/CU250BJM20W

In stock

Downloads: PDF Datasheet PDF Drawing CAD Drawing

All pictures shown are for illustration purposes only.
Actual product may vary due to product specification.

Description

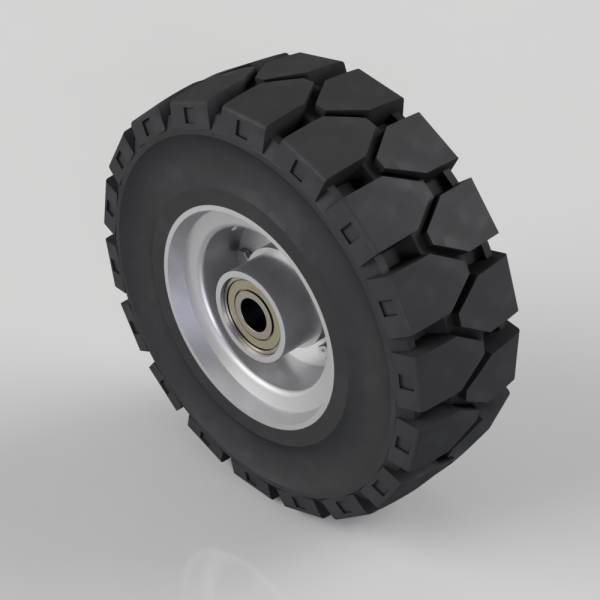

250mm diameter black 65 Shore A elastic speed rubber tyre on a steel disc rim with ball bearings. Tread width 84mm, bore 20mm, hub 75mm but bearings set back to give a face to face bearing 67mm. Load capacity 450kg at 4kph – At 6kph speed, the load of each wheel is advised to be 80% of the load at 4kph – At 10kph speed, the load of each wheel is advised to be 55% of the load at 4kph. – At 16kph speed, the load of each wheel is advised to be 45% of the load at 4kph. – At 20kph speed, the load of each wheel is advised to be 35% of the load at 4kph. – No data for elastic rubber wheel over 20kph.

Additional information

Bearing Type

Ball

Bore Size (mm)

20

Colour / Shore Hardness

Black Elastic Rubber on Steel Rim / 65 Shore A

Diameter (mm)

250

Hub Width (mm)

75

Load Capacity (kg)

450

Temperature Resistance

-20 °C TO +60 °C

Tread (mm)

84

Weight 5.017 kg
Wheel Material

Rubber on Steel
